From A to Zap: Understanding Your Home’s Electrical System

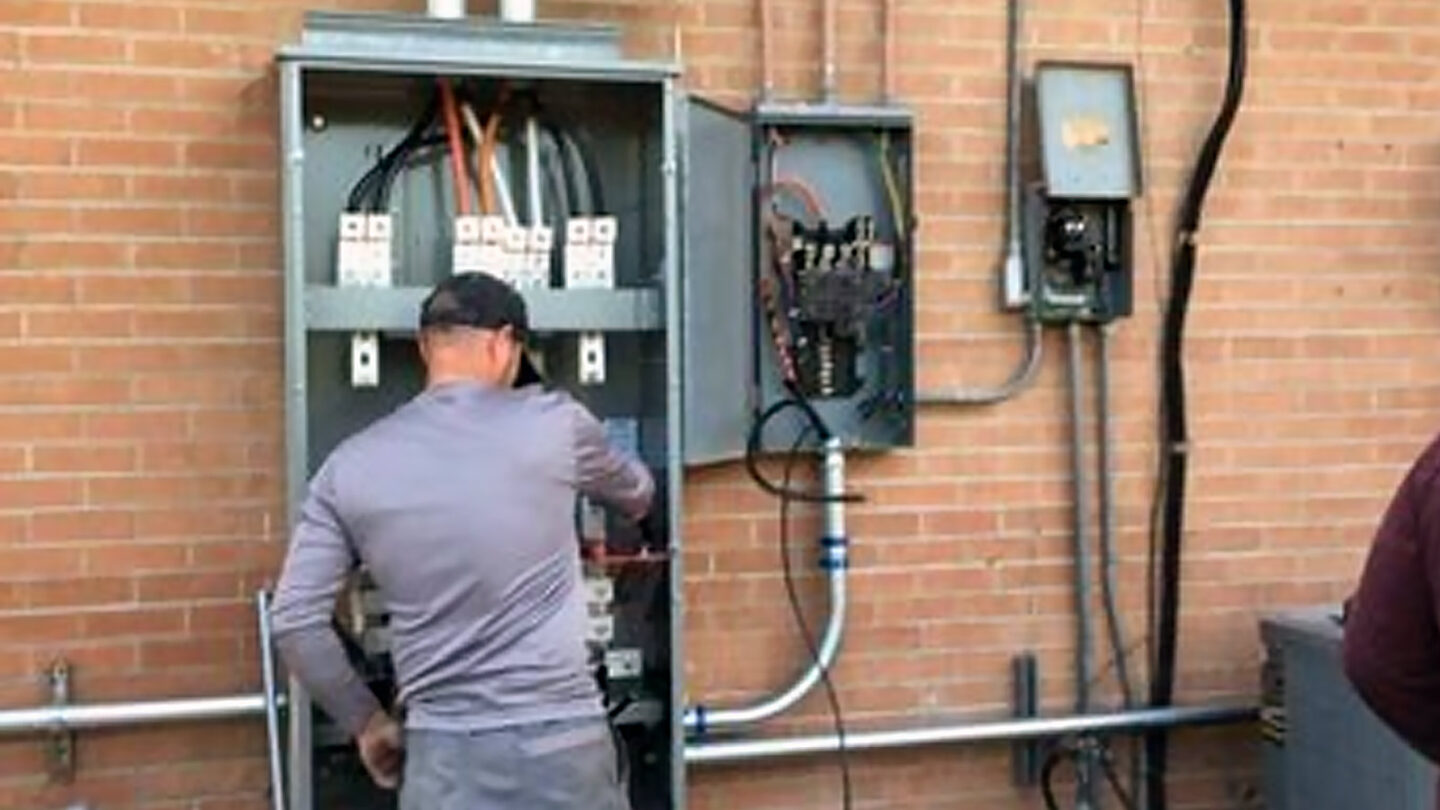

Panel-upgrades-in-Scottsdale-Arizona

Electricity is the heart of our homes, powering everything from the light bulbs to the refrigerator. Yet, the electrical system remains a mystery for many of us- a complex network of wires and devices that somehow brings us the energy we need. Today, we’re going to shed some light on this essential part of your home.

The Current That Carries Life
At its core, electricity is the flow of electrons through a conductor, usually wires, providing power to our applianes and devices. The type of current in our homes is alternating current, which means the flow of electrons changes direction periodically. This is the standard for household power supplied by your utility company.

Voltage, Amps, and Watts: The Trio of Power
Understanding a few basic terms can help you understand your home’s electrical system. Voltage is the pressure that pushes the electrons through the wires. Amps, or amperes, measure the volume of electrons- the electrical current. When you multiply volts by amps, you get watts, the measure of electrical power. For example, a 60-watt light bulb uses 60 watts of power when turned on.

The Journey from Power Plant to Plug
The journey of electricity begins at the power plant, where it’s generated and sent through high-voltage transmission lines. It reaches our homes through a service connection, which is connected to an electric meter that records our usage. From there, it flows through a service panel (sometimes called a breaker box), which distributes the power to different circuits throughout the house.

The Heart of Your Home’s Electrical System: The Service Panel
The service panel is the central hub of your home’s electrical system. It’s where the main breaker resides, which controls the power supply to the entire house. Inside, you’ll find individual circuit breakers that correspond to different areas or appliances in your home. If there’s an overload or short circuit, these breakers will trip, cutting off power to prevent damage or fire.

Outlets, Switches, and Fixtures: The Endpoints of Power
As electricity travels through your home’s wiring, it eventually reaches its destination- outlets, switches, and fixtures. Outlets provide a place to plug in our devices, while switches control the flow of electricity to lights and appliances. Fixtures are the permanent features of our home, like ceiling lights, that are directly wired into the electrical system.

Fun Fact: Some outlets, called “half-hots” are controlled by a switch. When you turn the switch on, half of the outlet will be turned on for use. This was previously used for lamps, so you can leave the lamp plugged in, and turn the switch on/off to use it.

Safety First: Understanding GFCIs and AFCIs
For safety, certain outlets, especially in areas prone to moisture like bathrooms and kitchens, are equipped with Ground Fault Circuit Interrupters (GFCIs). These devices protect against electric shock by quickly cutting off power if a ground fault is detected. Another safety device, the Arc Fault Circuit Interrupter (AFCI), protects against fires by detecting dangerous electrical arcs and shutting down the circuit.

DIY or Call A Pro?
While understanding your home’s electrical system is empowering, it’s important to know when to call in a professional. Simple tasks like resetting a tripped breaker or changing a light bulb are within most homeowner’s abilities. However, for any wiring work or repairs, it’s best to hire a licensed electrician to ensure safety and compliance with local codes.

Empower Yourself with Knowledge
By understanding the basics of your home’s electrical system, you can better manage its maintenance and troubleshoot minor issues. Remember, electricity is a powerful tool that requires respect and knowledge to handle safely. So, empower yourself with knowledge, and let Belmont Electric light the way to a safer, more efficient home.
